FOR MACHINE TOOL DEALERS / ER200
Your next axis.
A clearer path
to the right fit.

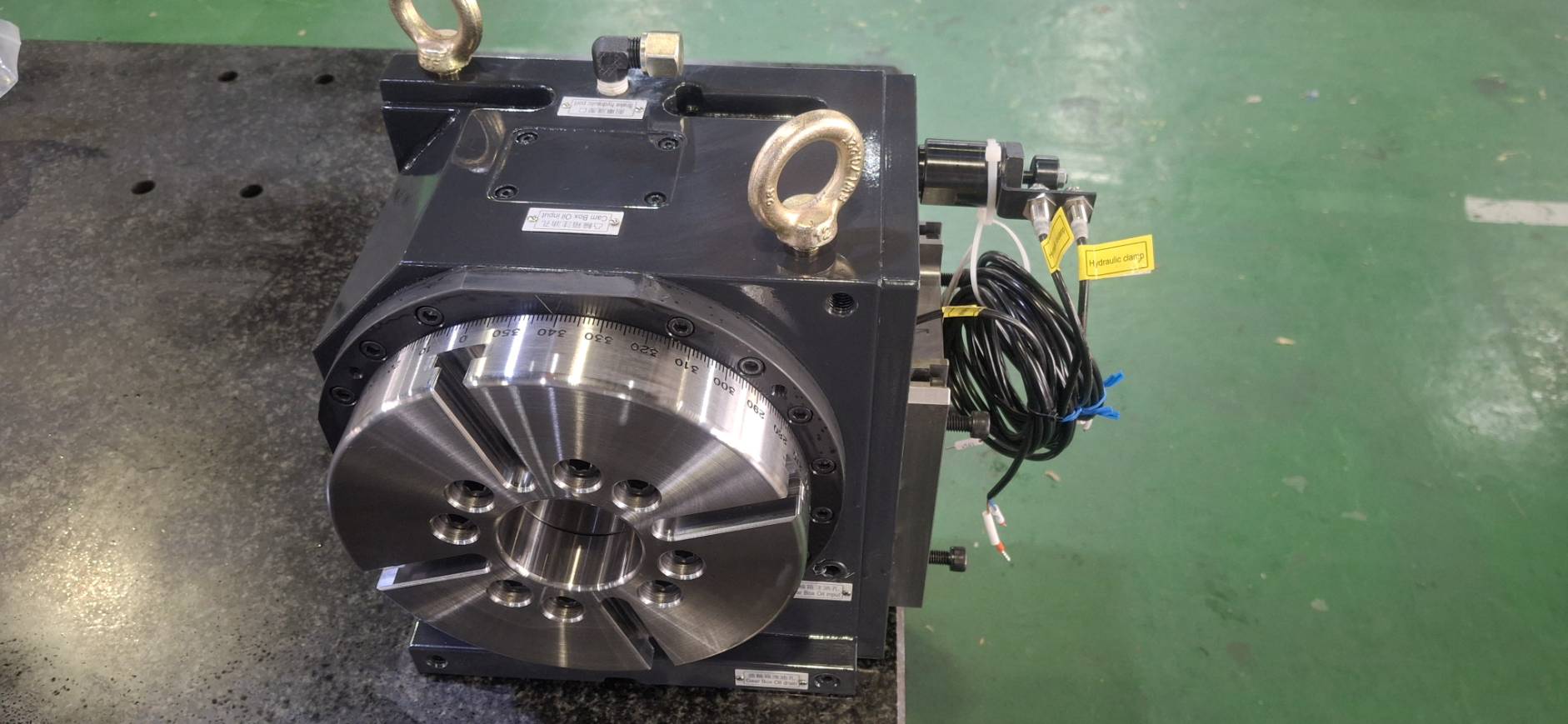

A 200 mm CNC rotary table. Real product detail. Inspection records you can review. Start your next customer conversation with the information that matters.
Machine fit · Motor configuration · Technical documentation
A PRODUCT. A PROJECT. A WORKING CONVERSATION.
Give your customer
more than a catalogue.
The right rotary table starts with the machine, the part and the way your customer works.
Explore the ER200 below, then bring us the machine model, controller and fixture requirements. We can discuss the configuration and the information needed to move toward a quotation.
Talk through an application ↗200 mm
Table diameter
160 mm
Vertical spindle centre height
50 rpm
Maximum rotation speed*
0.001°
Minimum increment*
*Reference configuration. Confirm the specifications and configuration for each project.
02 / KNOW THE DETAILS
Built around
your fit check.
Check the fundamentals here.
Discuss your machine and application with ElixirFab.
| Table diameter | Ø200 mm |
|---|---|
| Spindle hole | Ø60 H7 mm |

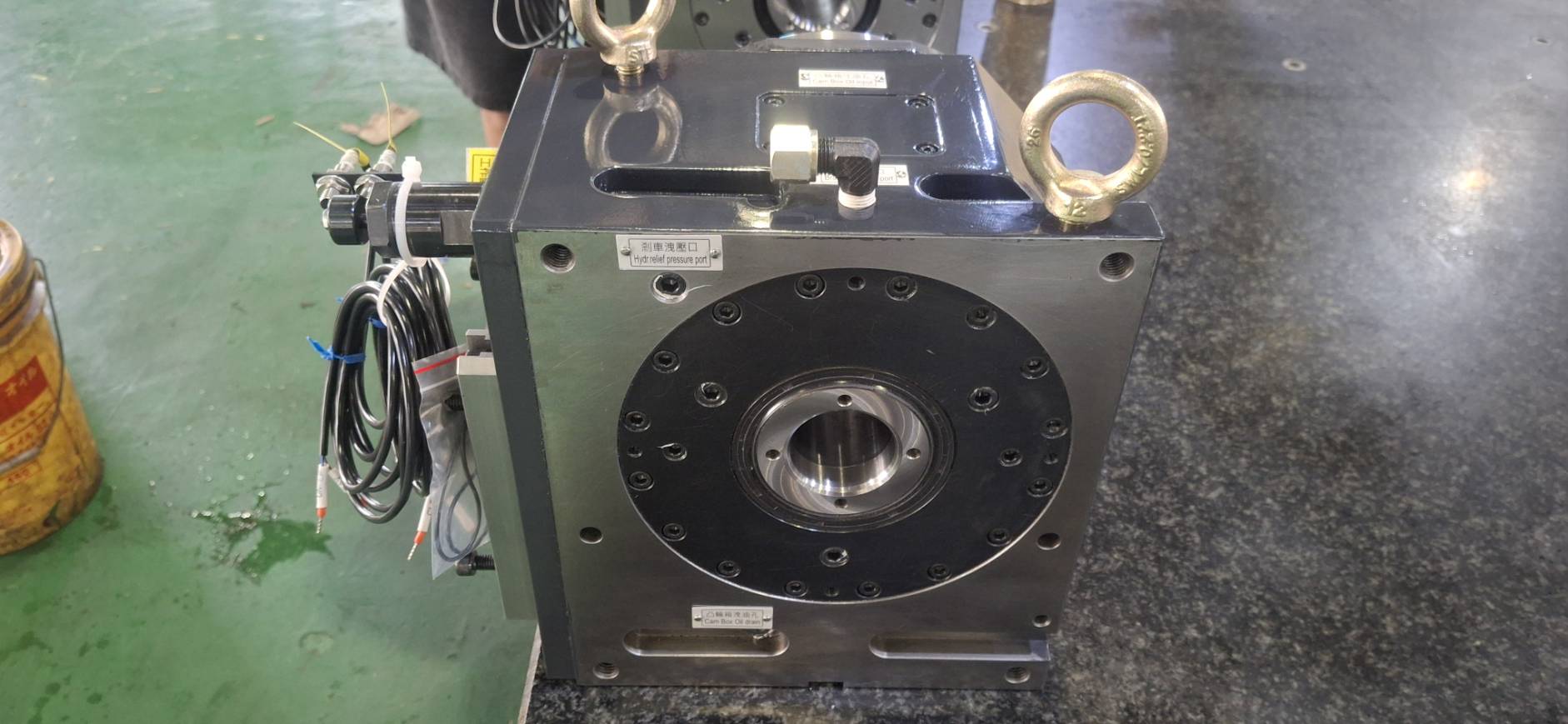

| Through-hole | Ø45 H7 mm |
| Vertical centre height | 160 mm |
| T-slot width | 12 H7 mm |
| Net weight | 76 kg |
| Total reduction ratio | 60:1 |
| Clamping system | Hydraulic |
| Clamping torque | 80 kgf·m |
| Indexing accuracy / repeatability* | 14″ / 4″ |
*Reference specifications are separate from the measured ISO 230-2 values below. Motor configuration, dimensions and interfaces must be confirmed for each project.
Discuss technical details ↗03 / SEE THE EVIDENCE
Precision deserves
a closer look.
Go beyond a specification line. Review the measurement method, the results and the setup behind them.
HEIDENHAIN ACCOMMeasured.
Measured.
Documented.
Open to review.

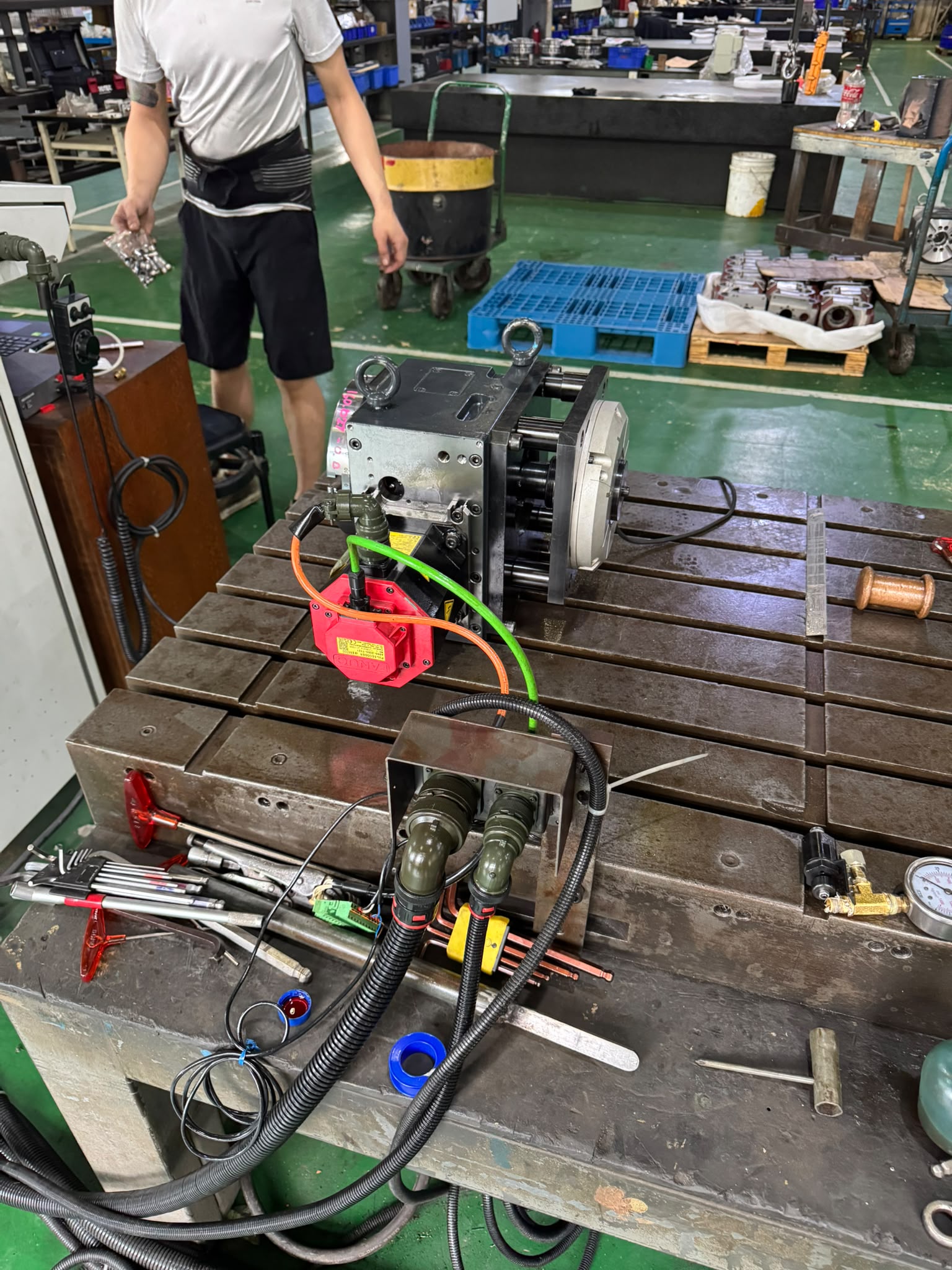

The reference measurement evaluates angular positioning according to ISO 230-2, using a RON886C reference measurement system.
25measuring points
5measurement cycles
Report 01: A = 23.17″; R = 13.94″. Measurement dated 24 August 2026. These results describe the tested unit and conditions; they are separate from the manual’s nominal specification.
Discuss measurement requirements ↗04 / FROM CONFIGURATION TO DELIVERY
The details around
the rotary table matter.

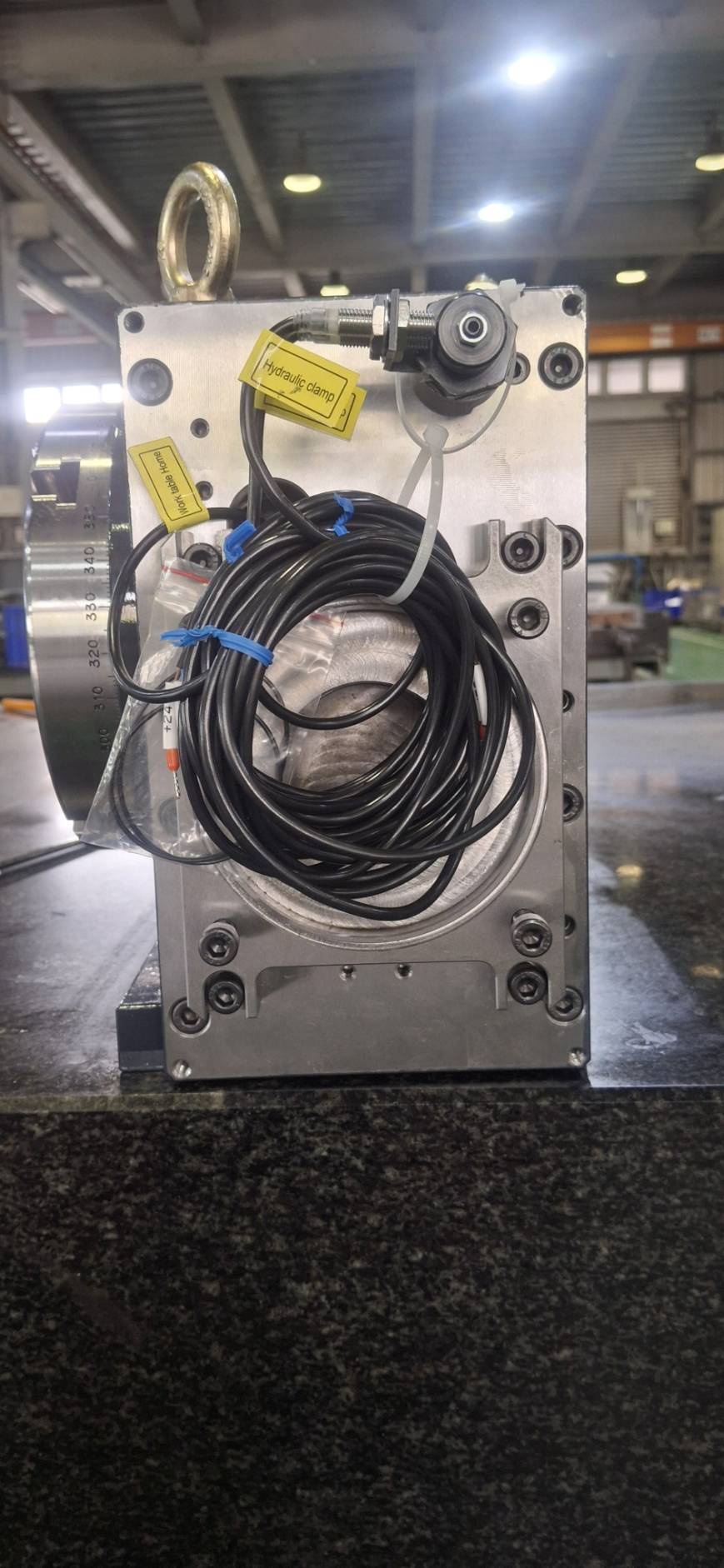

A closer view of the product,
its interfaces and its preparation.

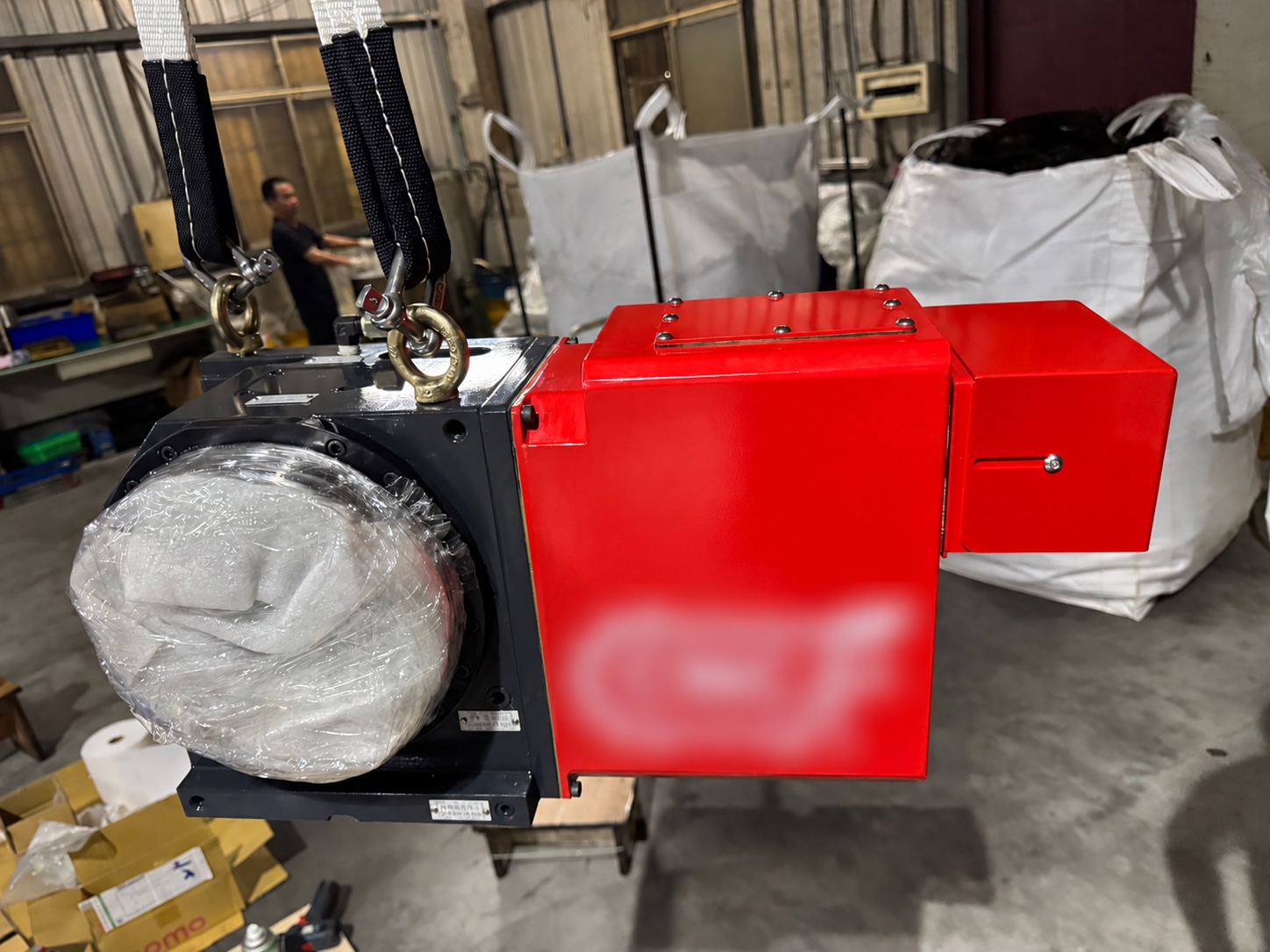

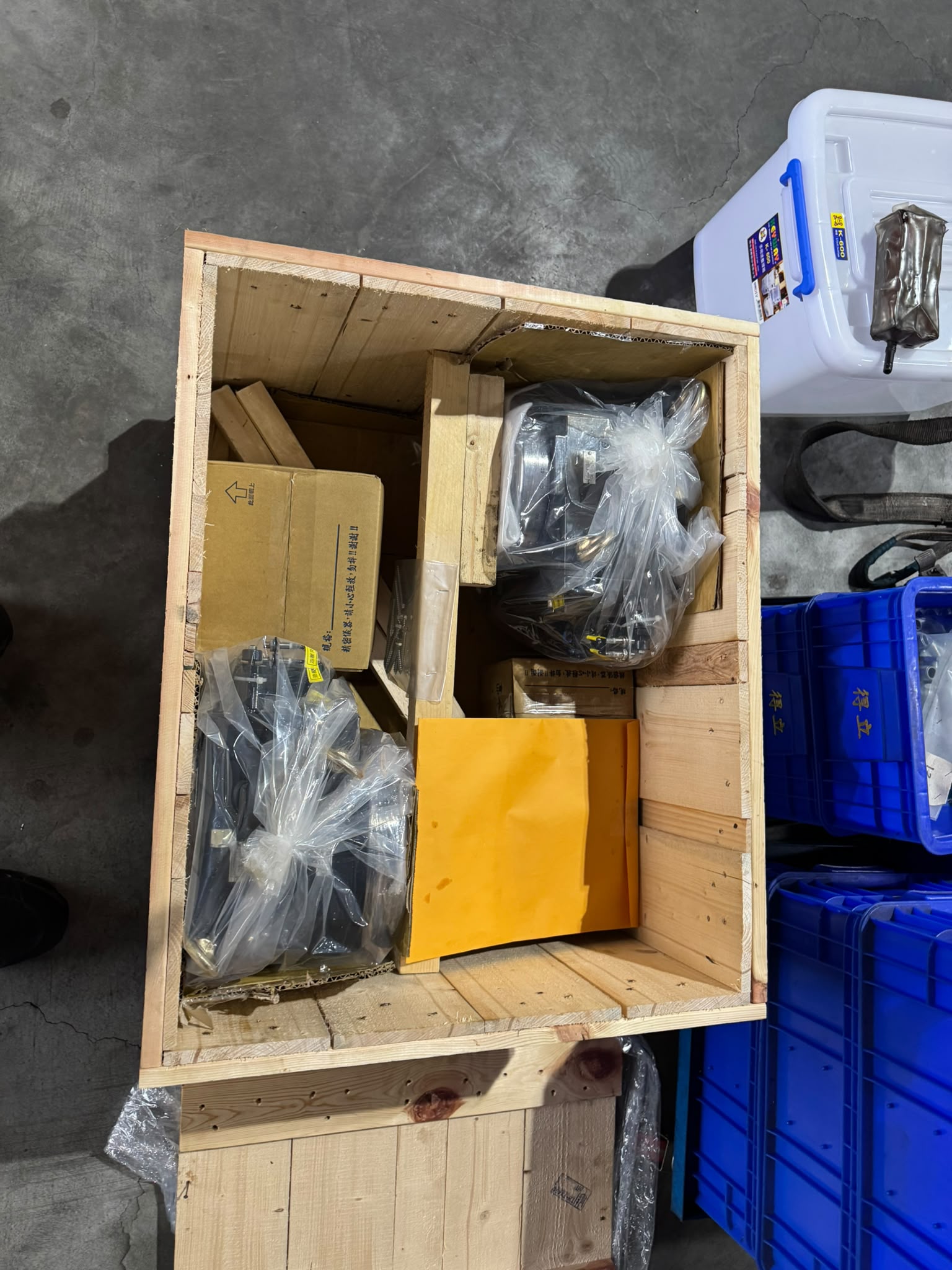

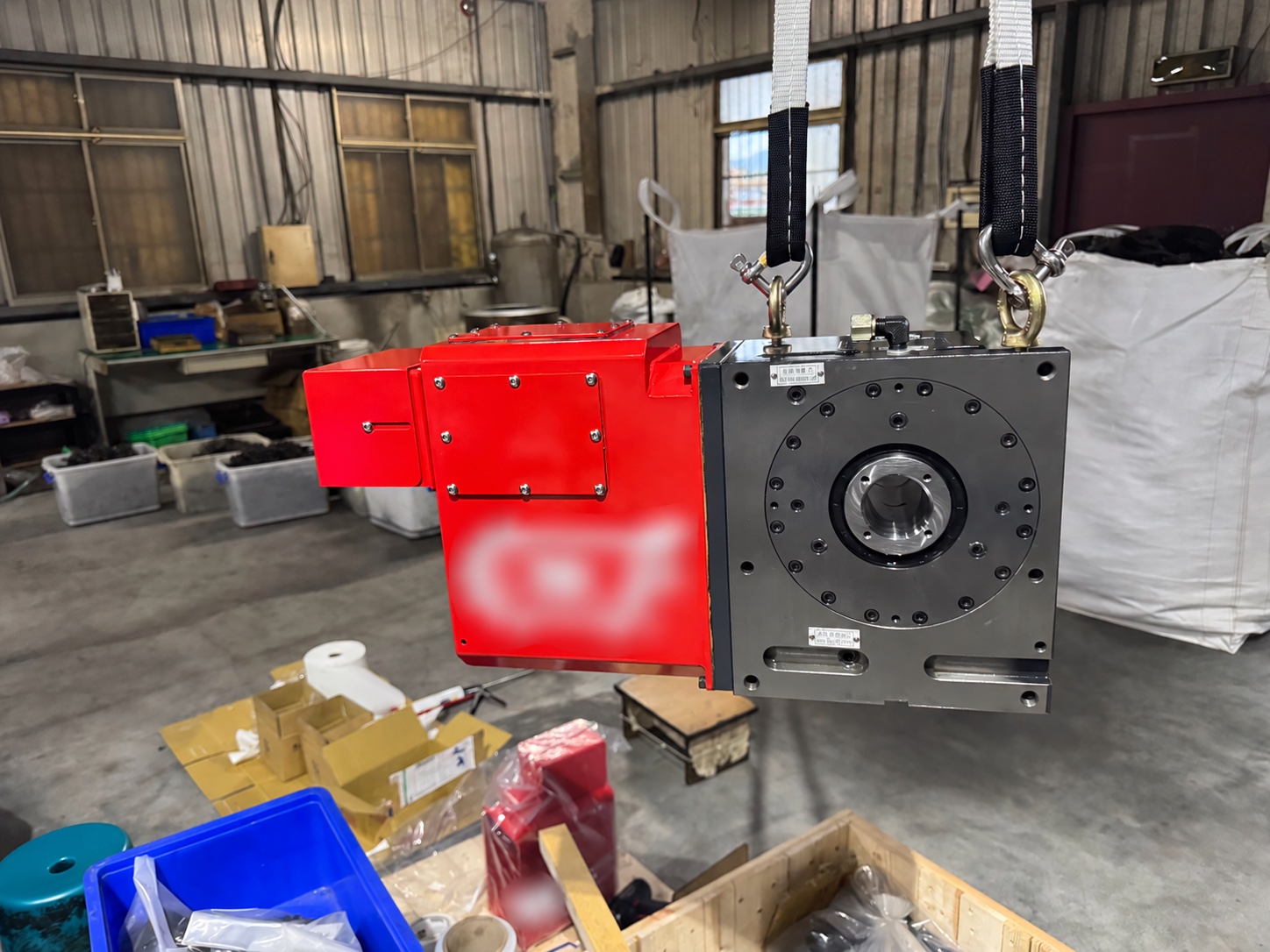

Completed configurations photographed before packing. Customer logos have been blurred for privacy.
SEE IT IN MOTION
Need to see a specific operation?
Ask about a running video for the configuration or movement you need to evaluate.
05 / THE TECHNICAL DESK
Let’s work through
the technical details.
Tell us what your machine and application need.
Share your machine model, controller, installation space and accuracy requirements. ElixirFab will help clarify the configuration and the next step for your project.
Discuss your technical requirements ↗06 / FOR DEALERS
Bring the application.
Let’s work through the fit.
Define the requirement.
Workpiece and fixture, combined load, cutting application and required accuracy.
Clarify the next step.
Discuss the configuration, quotation inputs, technical documents and delivery responsibilities.
LET’S START WITH YOUR NEXT PROJECT
A quick conversation.
A concrete next step.
Let’s spend 5 minutes on your machine, your customer’s application and the ER200 configuration to evaluate.
Send the basics below and suggest a convenient time.
